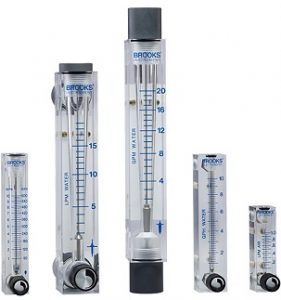

2500 系列亚克力管变面积流量计/转子流量计

型号 2510 / 2520 / 2530 / 2540S/2450V/ 2540I,非腐蚀性和低压应用,采用了精加工的亚克力材质;液体或气体测量经济合算。



特点

  • 在英制或公制刻度盘上可直接读取空气或水的测量刻度
  • 测量 40 ccm – 4000 lpm 空气和 4 ccm – 20 gpm 水的流速
  • 三个精度等级可供选择:2%、3% 或 5% 满量程
  • 优质螺纹铜管面板安装衬套防止流量计脱落
  • 可以用控制阀(或无阀)进行配置
  • 配件和阀门可用于黄铜、不锈钢或 FNPT PVC 管接头,确保轴向式或面板安装
  • 背板和六角扳手可移动,便于扭转

优势

  • 耐用、一体式、透明的亚克力结构
  • 大刻度容易读取
  • 正确到位的阀门正处于受压位置
  • 连杆引导的浮子便于稳定测量
  • 阀门、配件、环形密封圈选项能满足多项应用
  • 多个接头选择,易于安装
  • 易于拆装,便于维修

应用

  • 水产业空气采样设备
  • 海水淡化设备
  • 气体分析仪
  • 医疗系统
  • 图片处理设备
  • 水处理和分配系统
  • 清洗











型号 2510 2520 2530 2540S or V 2540I
区别 Premium Threaded Inserts for Reliable Panel Mounting

Valve With Positive Stop

Annealed Body for Added Strength

Premium Threaded Inserts for Reliable Panel Mounting

Valve With Positive Stop

Annealed Body for Added Strength

Premium Threaded Inserts for Reliable Panel Mounting

Valve With Positive Stop

Annealed Body for Added Strength

Higher Accuracy

S – Back Connections (Standard)

V – Valve (Back Connection Only)

Higher Accuracy

I – End Connection

流量范围-满量程容量 Air

0.1 – 200 scfh

0.04 – 25 lpm*
*QuickShip

6 – 100 lpm

Air

0.4 – 40 scfh

10 – 100 scfh*
*QuickShip

20 – 200 scfh

100 – 1000 ccm

0.4 – 20 lpm*
*QuickShip

3 – 50 lpm

10 – 100 lpm*
*QuickShip

0.3 – 3 scfm*
*QuickShip

Air

0.5 – 20 scfm

14 – 560 lpm







Air

3 – 100 scfm

100 – 3000 lpm







Air

3 – 100 scfm

100 – 4000 lpm







流量范围-满量程容量-液体 Water

10 – 240 ccm

0.2 – 5 gph

1 – 10 gph*
*QuickShip

2 – 40 gph

Water

4 – 660 ccm

100 – 1500 ccm*
*QuickShip

200 – 3700 ccm

1- 60 gph*
*QuickShip

Water

0.25 – 5 gpm

1- 20 lpm

Water

0.4 – 20 gpm

1- 75 lpm

Water

0.4 – 20 gpm

1- 75 lpm

精度 5% FS 3% FS 3% FS 2% FS 2% FS
最大压力 100 psig 100 psig 100 psig 100 psig 100 psig
最大温度 65oC (150oF) 65oC (150oF) 65oC (150oF) 65oC (150oF) 65oC (150oF)
密封材料 BUNA-N (Std with Brass fittings)*

Viton® (Std with Stainless Steel fittings)*

*QuickShip

BUNA-N (Std with Brass fittings)*

Viton® (Std with Stainless Steel fittings)*

*QuickShip

BUNA-N (Std with Brass fittings)

Viton® (Std with Stainless Steel fittings)

Buna-N O-Rings w/Brass or PVC fittings

Viton O-rings w/Stainless Steel fittings

(Valve Internal)

Buna-N O-rings w/Brass or PVC fittings

Viton O-rings w/Stainless Steel fittings

(Valve Internal)

过程连接材料 Brass*

Stainless Steel*

*QuickShip

Brass*

Stainless Steel*

*QuickShip

Brass

Stainless Steel

PVC FNPT Pipe Connections (Std.) PVC FNPT Pipe Connections (Std.)
阀门 No Valve*

Standard Inlet Valve*

Outlet Valve

*QuickShip

No Valve*

Standard Inlet Valve*

Outlet Valve

*QuickShip

No Valve

Standard Inlet Valve

Outlet Valve

Integral Valve on “V” Model

Inline Gate Valve on “S” Model

Inline Gate Valve
